V6 Wheels Lite

Minimalistic beadlock wheels designed to narrow your track width and save weight. Faces are cut from 3mm black g10, for maximum durability. Barrels are 3d-printed from pa6-cf nylon. Cut to order, with custom colors, designs and materials available. Let me know what you want to see.

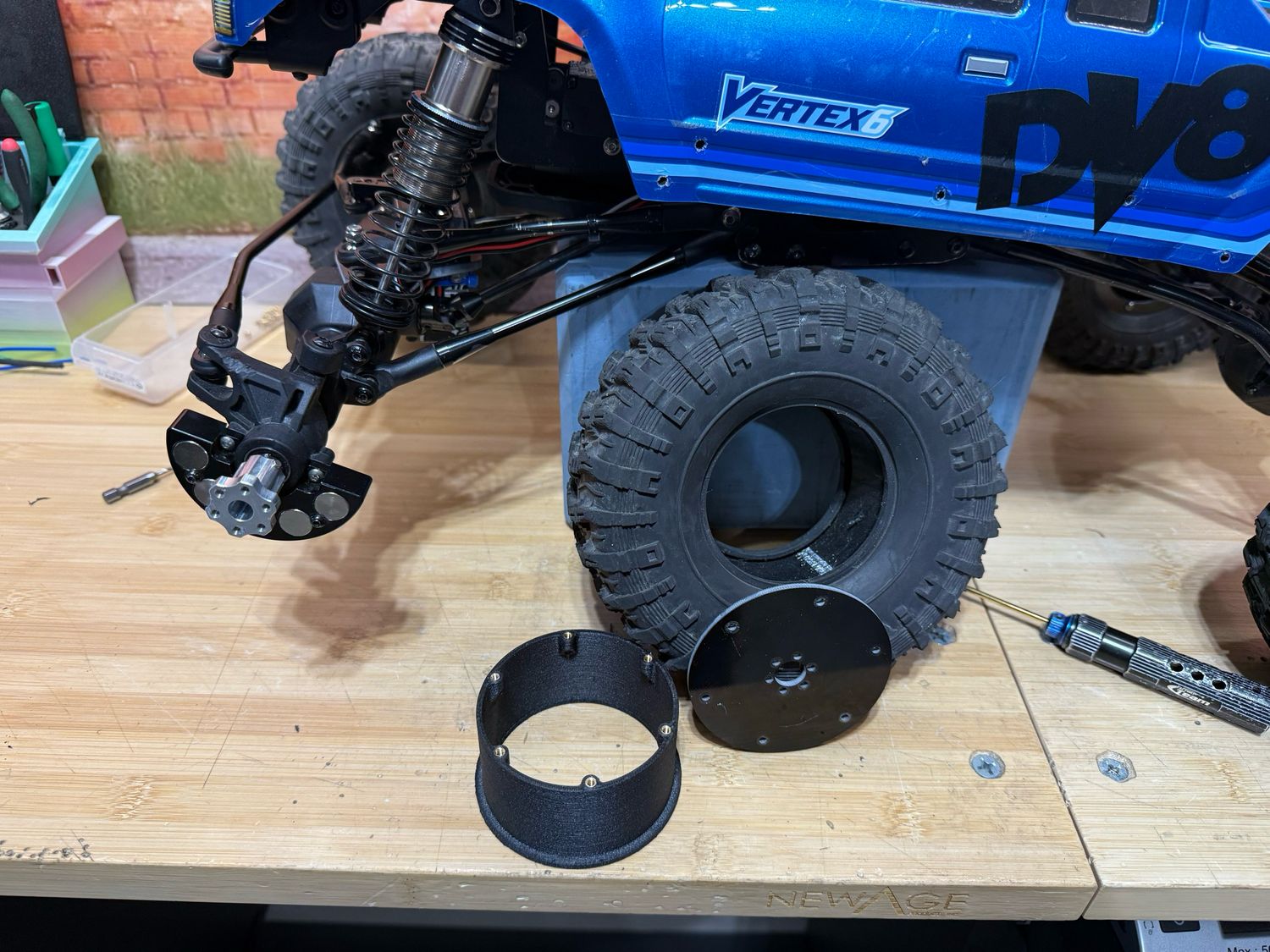

Designed out of necessity, the overall stock track width of the Vertex6 is just a little too wide for 20” gates. These positive offset wheels solve that problem, and allow much greater tunability for your personal preferences. Using Dlux Fab 8mm hubs, this combination sets you up to run approx 15.5” wide up front, and 14” wide in the rear. Smaller hub will fit the front with some Dremel work to your knuckles, and hubs/spacers are plentiful, if you want to wider the rear.

Things to note:
These wheels are designed fit over the optional Redcat weight hangers. However, bolt-on weights are typically Not allowed in competition.

These wheels are approx 3mm narrower than stock. Foams and inserts will fit a little snug. This is necessary to be able to narrow the front as much as possible.

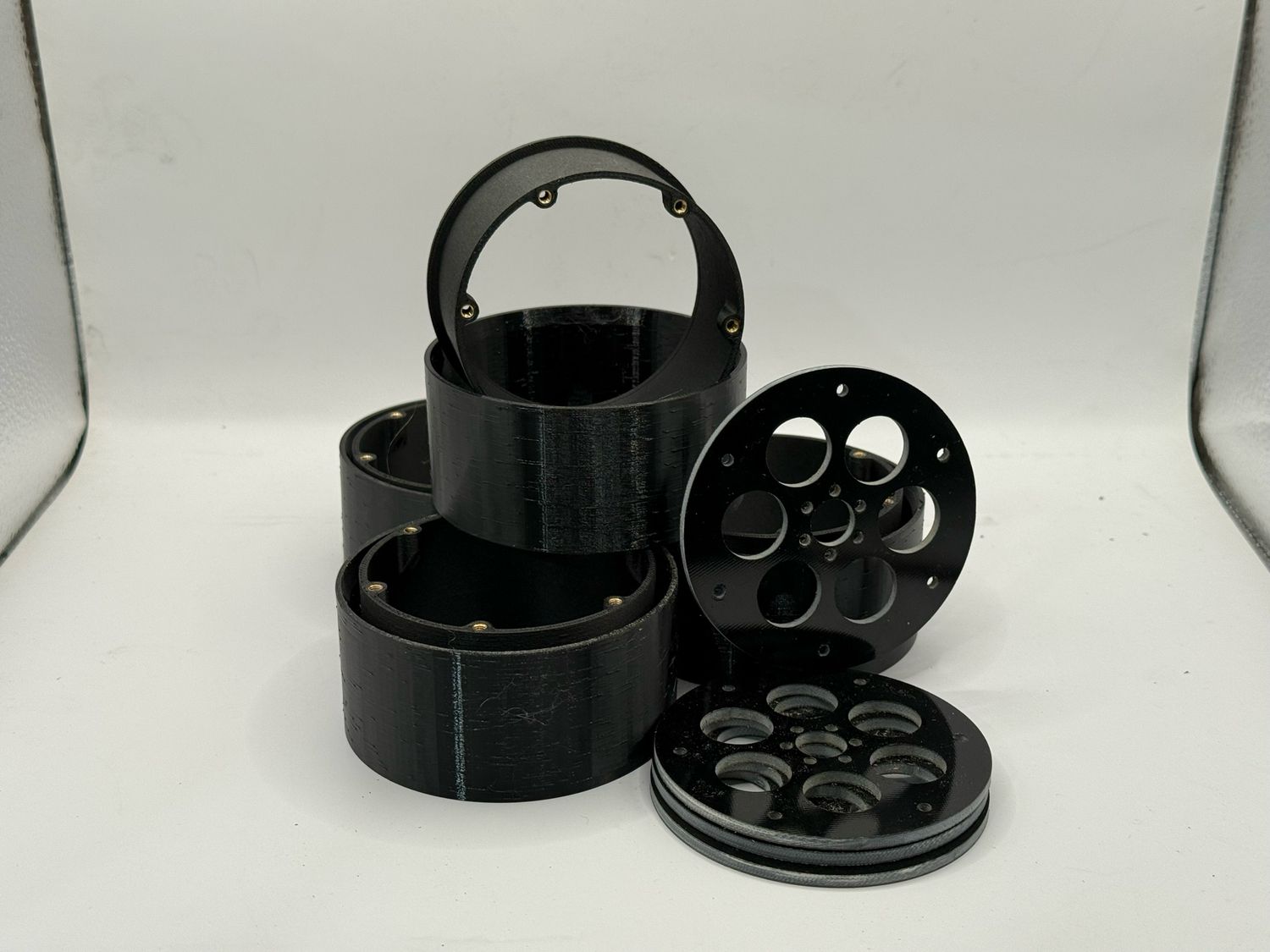

Includes:

(4) wheel faces
(4) wheel barrels
(48) stainless steel mounting screws
(2) .900 hubs for front (with axle shims)
(2) .225 hubs for rear (with axle shims)

Substitutions for hubs can be made, (for instance .600 front and .350 rear is what I'm running), but will be handled as a special order.
