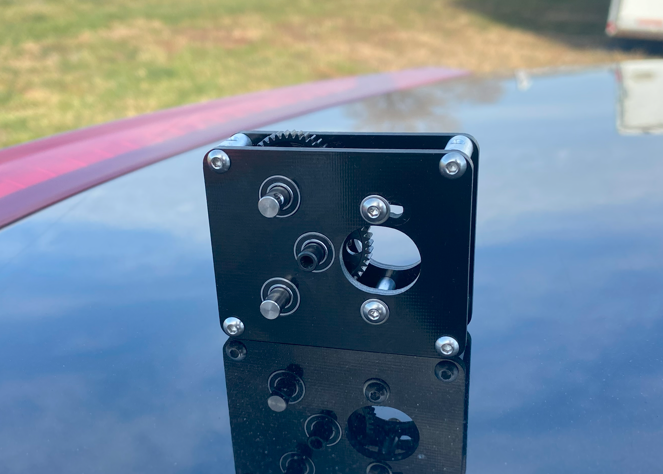

Universal 8x8 or 6x6 Transmission

***Some transmissions are made to order, and may 2-3 days for shipping***

Designed to work with either straight- or portal- axles, this is the strongest, lightest, and most compact transmission available for this type of application.

This transmission is designed with a second output shaft, specifically for 6x6 and 8x8 builds. That means you can use whichever axles you want! No pass-throughs or flipping ring gears needed. *you will most likely need a carrier bearing* (I have those too)

Hardened chromoly gears and titanium output shafts to withstand all of your abuse.

3.667:1 reduction with a 44t spur gear

Accepts 9-18t 48p pinions

Side plates cut from black g10. Custom colors or black carbon fiber available. Please mail for a quote.

48mm tall
60mm wide
weighs 70g

Mounts with two holes, spaced 52mm apart. Let me know if you need help finding a skidplate that works for your build.
