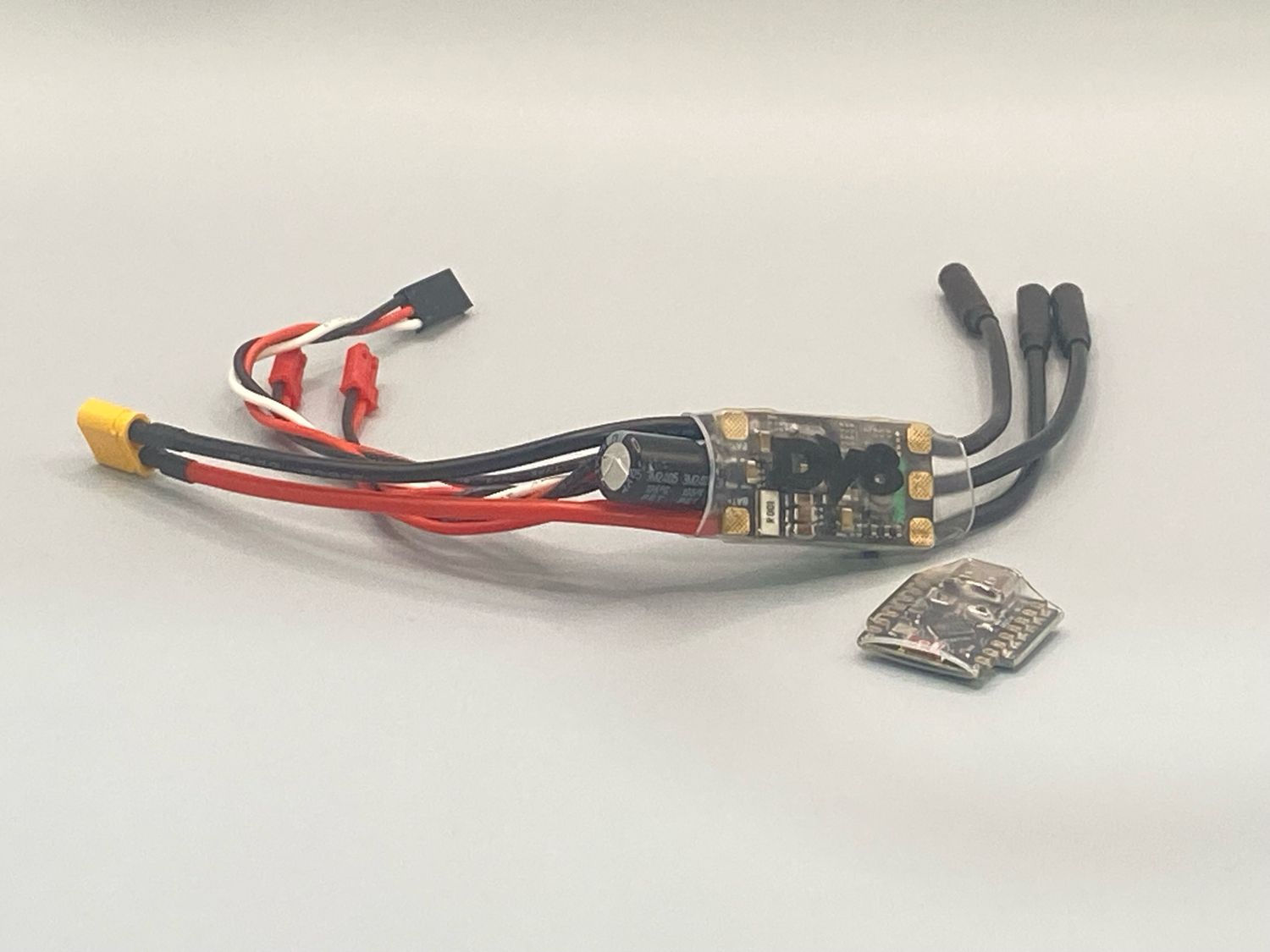

Stilte Silent ESCape32

ESCape32 firmware for smooth, silent, non-sensored control of brushless motors

70A continuous/ 110A max current

2-8s capable (3-4s recommended)

Small footprint (54x19mm)
Weighs only 32g (1.1oz)

Onboard 240uF capacitance plus external 470uF capacitor for voltage spike suppression *
Built-in 8.4v/5a BEC for rx power, not sufficient for high-current 3-wire servos
2 JST connectors for direct-power servos or external BEC
Your choice of battery connector
CRC70 waterproofed for additional protection
4mm gold-plated motor connectors
Heatsink can be easily removed for weight/space savings, if desired
Wifi programming adapter included!

* In some cases, some servo manufacturers may require the use of an external TVS diode for their warranty coverage. It is highly recommended to purchase and use the appropriate one directly from them

ESCape32 features include:
Customizable startup music
Tune from your phone!
Sinusoidal startup
RPM-lock (similar to FOC)
Adjustable current, temp, and low voltage protection
More!

RTTTL music can be found here:
https://picaxe.com/rtttl-ringtones-for-tune-comman...

https://1j01.github.io/rtttl.js/#Barbie%20Girl

More ESCape32 info in the links below:

https://github.com/neoxic/ESCape32/wiki/TipsAndTricks#tuning-for-rock-crawlers

https://discord.gg/aed6xdSM5Y

Support ESCape32 here:
https://wise.com/pay/me/arsenyv7
