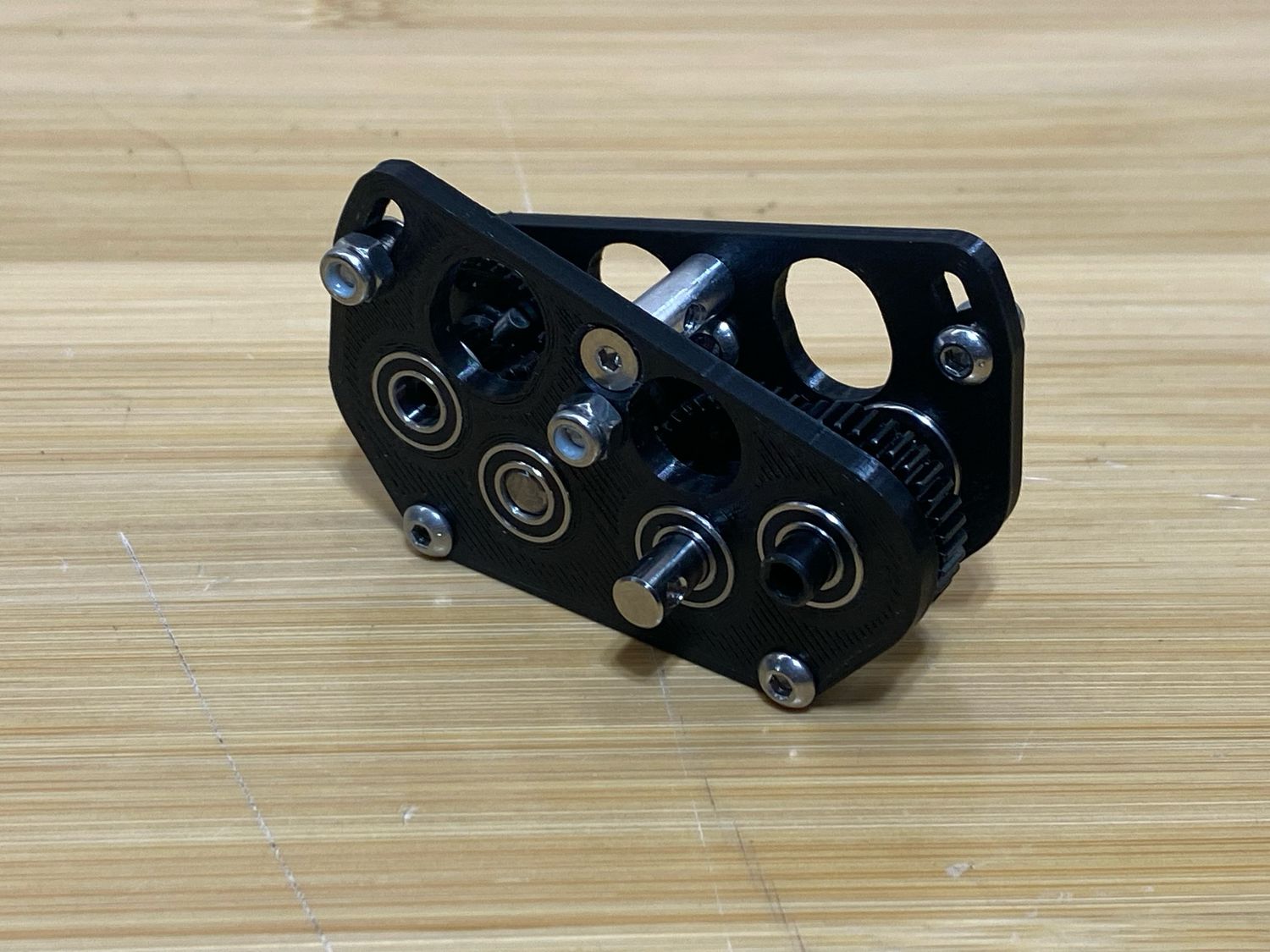

DV8 offset dual-motor transmission

Offset dual-motor transmission designed for use with offset front and rear diffs

***will be assembled for left-side front diff, unless you request otherwise*carbon fiber side-plates
3:1 output ratio with 36t spur gear
fits 9-18t pinions
geared tall, this trans works best with portal axles or slow motors
for straight-axle gearing suggestions, please message or see the spreadsheet below
Dlux SAF gears and titanium output shafts
60.5mm wide
38.5mm tall
20mm long (motor-to-motor)
weighs only 60g
38mm mount spacing

For gearing options, please check out the spreadsheet below:
https://docs.google.com/spreadsheets/d/1Lq0u6akcLD...
