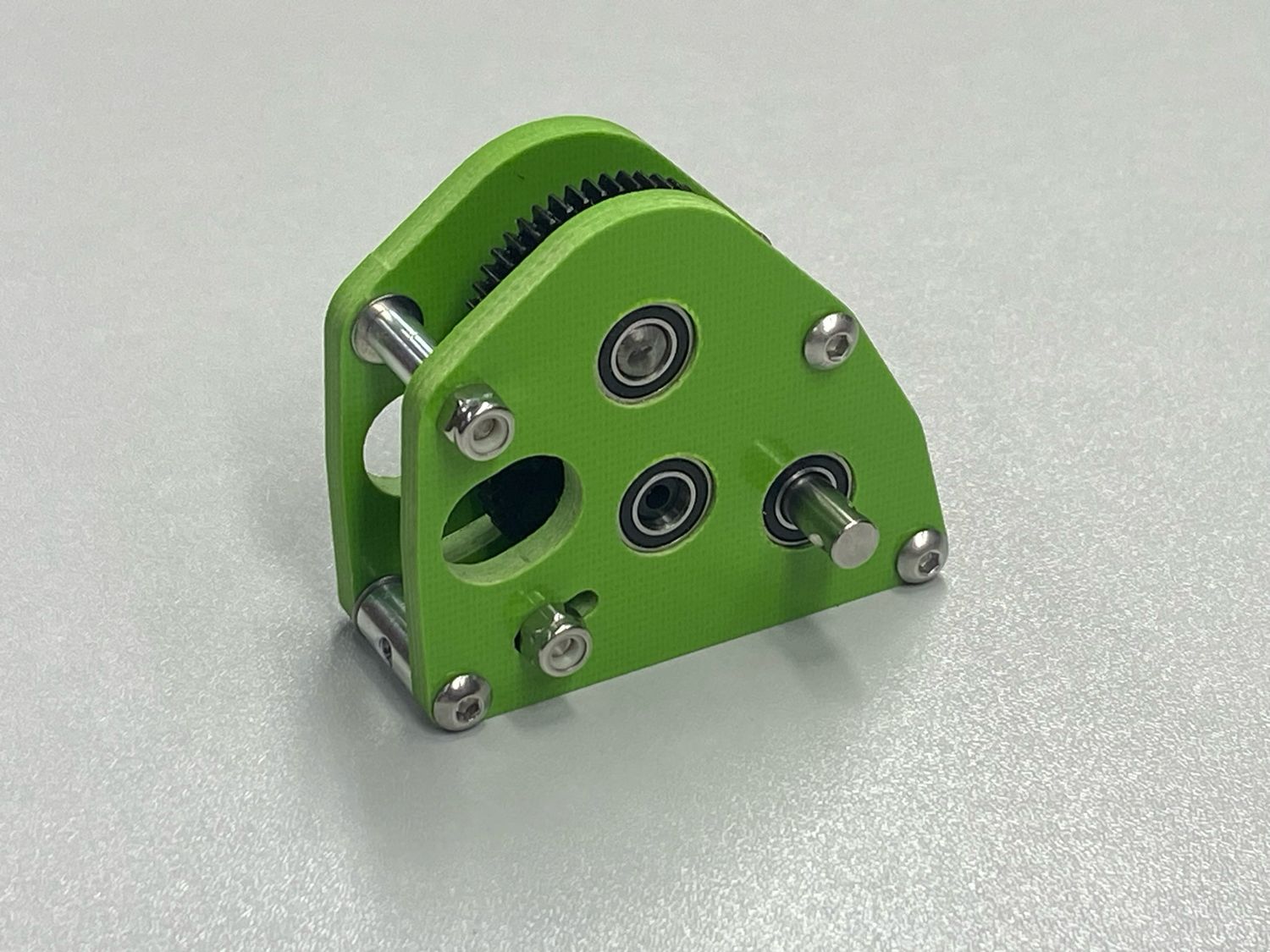

DV8 HOOD transmission

***Some transmissions are made to order, and may take 2-3 days for shipping***

HOOD (High Output OverDrive) transmission features:
3.667:1 front output ratio (suitable for straight or portal axle builds)
44t spur gear
Uses 9-18t pinions
9% underdrive to the rear output (up to 39% total, with diff gears)
High rear output so no carrier bearing is needed
53.5mm wide
46mm tall
weighs ~60g
46.8mm mount spacing

For gearing options, please check out the spreadsheet below:
https://docs.google.com/spreadsheets/d/1Lq0u6akcLD...
